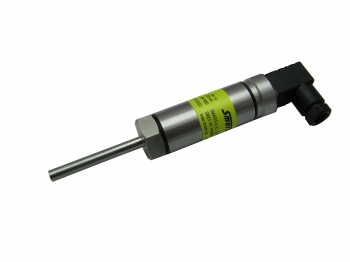

The TSKP Temperature Sensor with Built-In Transmitter (M: 22020516) measures temperature across various industrial media with precision. Designed for demanding environments, this sensor delivers stable 4–20 mA output for reliable process control.
The TSKP operates within an absolute measuring range of -40°C to 150°C. The standard configurable range spans -30°C to 150°C.
Users can program the 4–20 mA output range as required. The minimum adjustable span is 30°C. This flexibility allows precise adaptation to specific industrial applications.
The sensor includes a built-in programmable transducer. It provides a stable 4–20 mA analog output signal.
Programmatic linearization ensures accurate temperature conversion. Reverse 4–20 mA output configuration is also available. Adjust output behavior based on system requirements.
The TSKP provides clear diagnostic signals during faults. When the sensor detects a short circuit or interruption, it responds immediately.
Default programming sets short circuit to 4 mA and interruption to 22 mA. Users can modify this configuration programmatically. This feature enhances system safety and monitoring reliability.
The device operates with a supply voltage from 9 to 30 V DC. It withstands ambient temperatures around the head from -30°C to 70°C.
IP65 protection ensures resistance to dust and water jets. Industrial environments benefit from durable housing and secure construction.
The TSKP delivers measurement accuracy within 0.6%. Fast and stable response times improve control efficiency.
Response time in air reaches 40 seconds at t=0.5. Response time in oil improves to 15 seconds under specified conditions.
The sensor supports a maximum wire cross-section of 0.75 mm². Recommended cable diameter ranges from 4.5 mm to 6 mm.
It features HIRSCHMANN GDSN 307 rectangular connectors as standard. Straight HIRSCHMANN 4012 K PG7 connectors are also available.
Programmable 4–20 mA output
Wide measuring range up to 150°C
IP65 industrial protection
Built-in transmitter for simplified wiring
Accurate 0.6% measurement precision
Model: TSKP M: 22020516
Measuring Range Absolute: -40°C to 150°C
Configurable Range: -30°C to 150°C
Output: 4–20 mA programmable
Supply Voltage: 9–30 V DC
Measurement Error: 0.6%
Protection Rating: IP65
Connector Type: HIRSCHMANN GDSN 307 / 4012 K PG7
Max Load Resistance: Rz = (Vs-9) / 0.02
