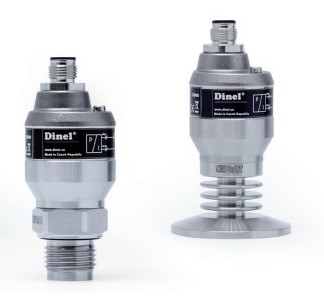

Pressure sensor PPM-35

Accurate Pressure Measurement for Industrial Processes

The PPM-35 Pressure Sensor provides precise pressure measurement for gaseous and liquid substances. Many industrial systems rely on this sensor for monitoring pressure conditions in pipelines, tanks, and processing equipment.

The sensor converts pressure values into a 4–20 mA electrical signal. Control systems then use this signal to monitor and regulate process conditions. This simple output format allows easy integration with PLC systems and industrial automation controllers.

Engineers frequently install the PPM-35 in applications that require reliable pressure monitoring and long-term measurement stability.

Wide Measuring Range for Versatile Applications

The PPM-35 supports pressure measurement ranges up to 100 bar. This capability allows the sensor to operate in many industrial environments, including fluid systems, compressed air installations, and hydraulic equipment.

Users can select relative or absolute pressure measurement, depending on application requirements. This flexibility makes the sensor suitable for a wide range of monitoring tasks.

The sensor also tolerates pressure overload up to two times the measuring range, which protects the device during temporary pressure spikes.

Durable Stainless Steel Construction

The PPM-35 features a robust stainless steel housing and diaphragm. This construction protects the sensor from corrosion, vibration, and mechanical stress.

The stainless steel design ensures stable operation in demanding industrial environments. As a result, the sensor delivers consistent performance over long operating periods.

This durable construction also improves resistance to aggressive media and harsh working conditions.

High Accuracy and Long-Term Stability

The PPM-35 delivers 0.5% accuracy of the measuring range. This level of precision ensures dependable pressure readings for critical process control.

The sensor also offers excellent long-term stability of 0.3% per year. This stability reduces calibration frequency and maintains reliable performance during continuous operation.

Additionally, the device maintains stable measurements within the temperature compensation range of 0 to +50°C.

Flexible Temperature Performance

The PPM-35 operates within a media temperature range of −20°C to +85°C under standard conditions. For high-temperature applications, the sensor supports media temperatures up to +200°C with the specialized design.

This wide temperature capability allows installation in various industrial systems, including heated pipelines and high-temperature processing equipment.

Reliable Protection and Easy Installation

The sensor includes protection ratings of IP67 or IP68, depending on the configuration. These ratings protect the device from dust, moisture, and harsh environmental conditions.

Technicians can install the PPM-35 quickly due to its compact design and simple electrical connection. Once installed, the sensor provides stable operation with minimal maintenance requirements.

The PPM-35 combines durability, accuracy, and flexible performance. These features make it a dependable solution for industrial pressure measurement.
